Brand Name : X MESH
Model Number : X MESH-Barbed Wire-003
Certification : ISO9001:2015
Place of Origin : Hebei P.R. China.
MOQ : 500Coil
Price : USD15-85/Coil
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 50000Coils/week
Delivery Time : 5-7days
Packaging Details : Wrapped with plastic film and pallet packing
Product Name : Galvanized Barbed Wire
Surface Treatment : Hot Dipped Galvanized
Wire Diameter : 2.0mm
Barb Type : Four Barbs
Series : Double Strand
Barb Length : 30mm
Barb Spacing : 150mm
Twist Type : Reverse Twist Type
Tensile Strength : 1200MPa
Packing : Coil Packing or Pallet Packing
Product Name | Galvanized Barbed Wire |
Surface Treatment | Hot Dipped Galvanized |
Wire Diameter | 1.8mm |
Barb Type | Four Barbs |
Series | Double Strand |
Barb Length | 30mm |
Barb Spacing | 150mm |
Twist Type | Reverse Twist Type |
Tensile Strength | 1200MPa |
Packing | Coil Packing or Pallet Packing |
GALVANIZED BARBED WIRE | ||||
Wire Diameter(BWG) | Length per KG | |||
Barb distance3" | Barb distance4" | Barb distance5" | Barb space6" | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Wire Diameter | Barbs' distance | Barb length | |
Before coating | After coating | 7.5cm - 15cm | 1.5cm - 3cm | |
1.0mm - 3.5mm | 1.4mm - 4.0mm | |||
Bwg11 - Bwg20 | Bwg8 - Bwg17 | |||
Swg11 - Swg20 | Swg8 - Swg17 | |||
Other sizes can be made as request |
![]() |

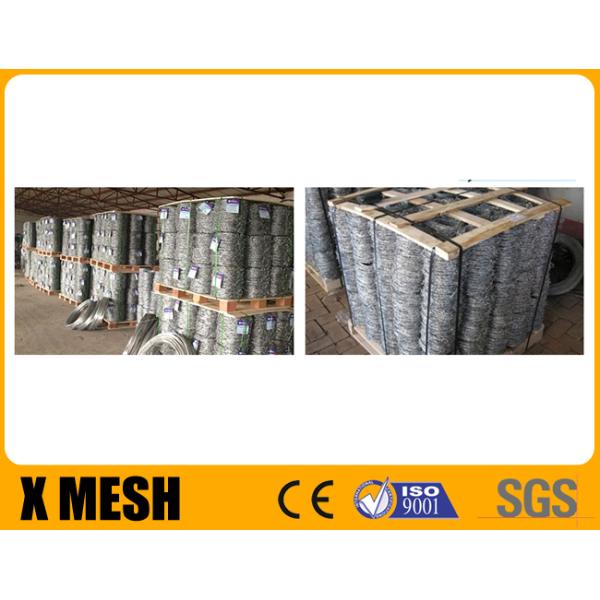

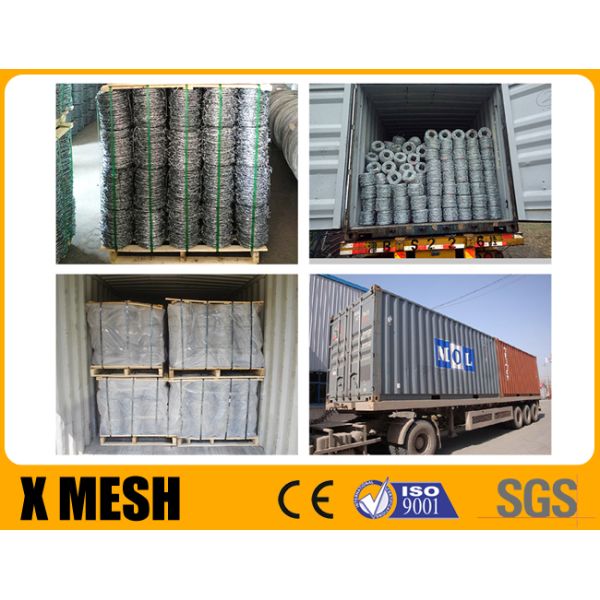

Galvanized Barbed Wire With Four Barb Type Reverse Twist High Tensile For Military Security Images |
